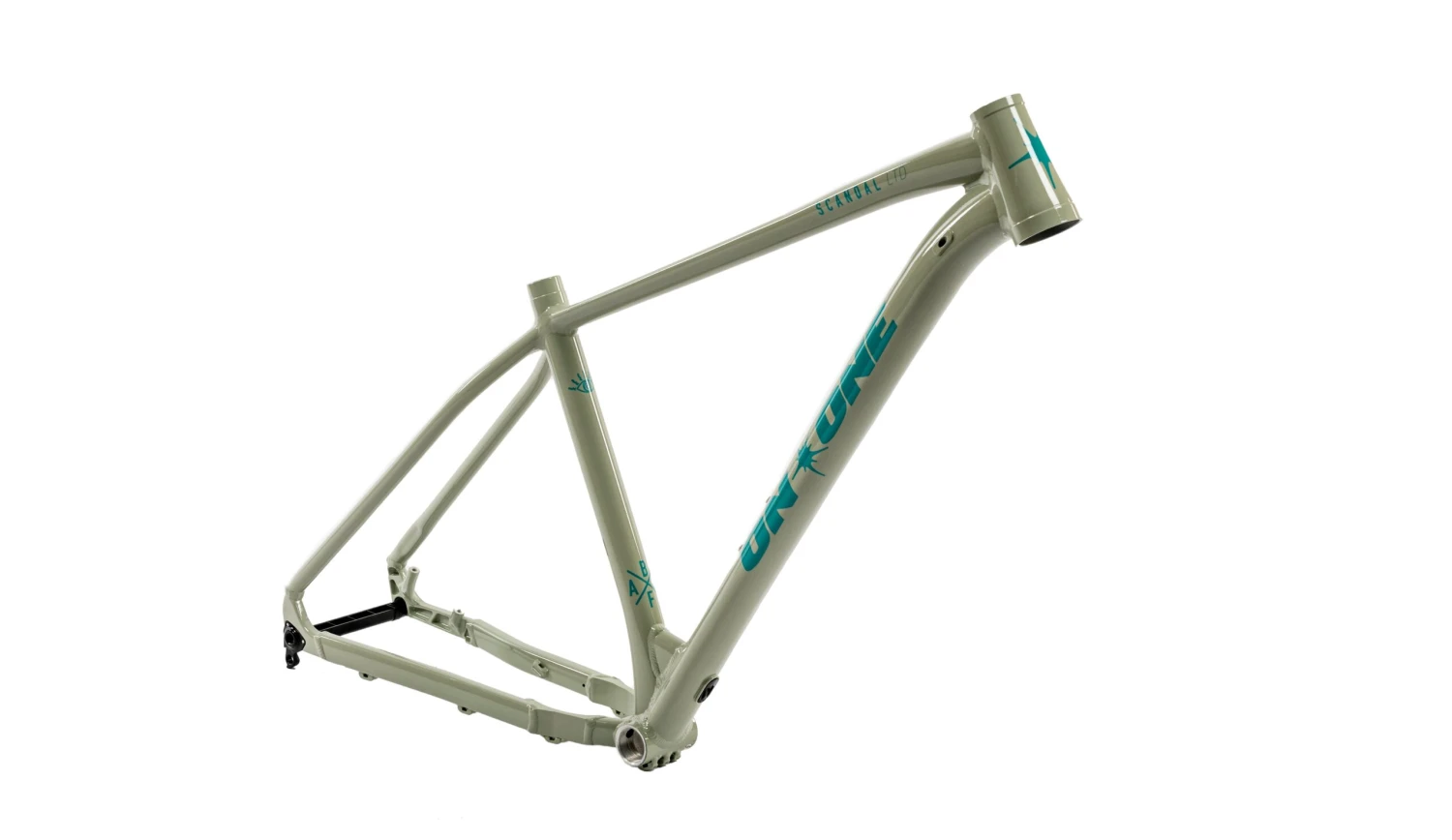

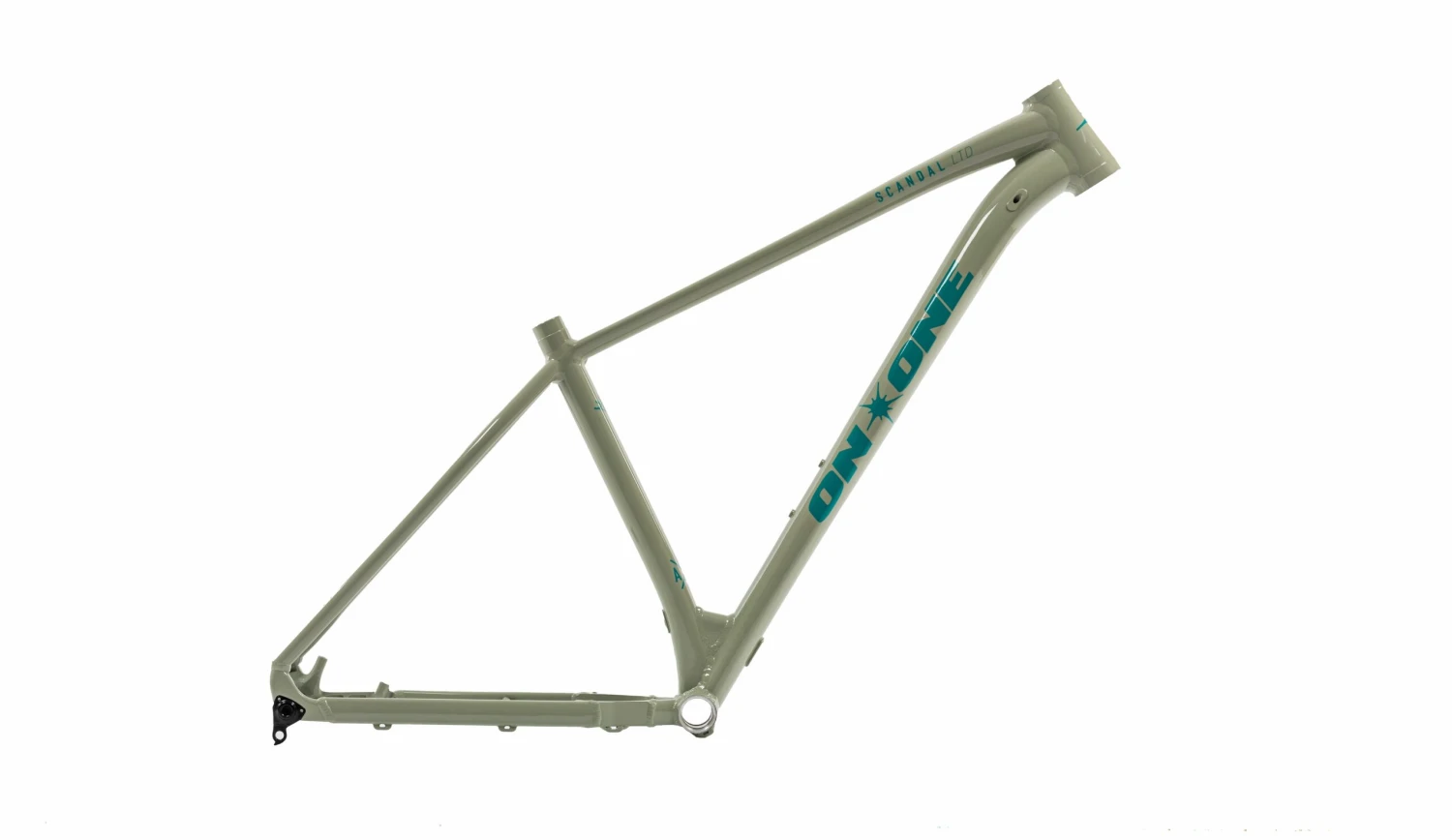

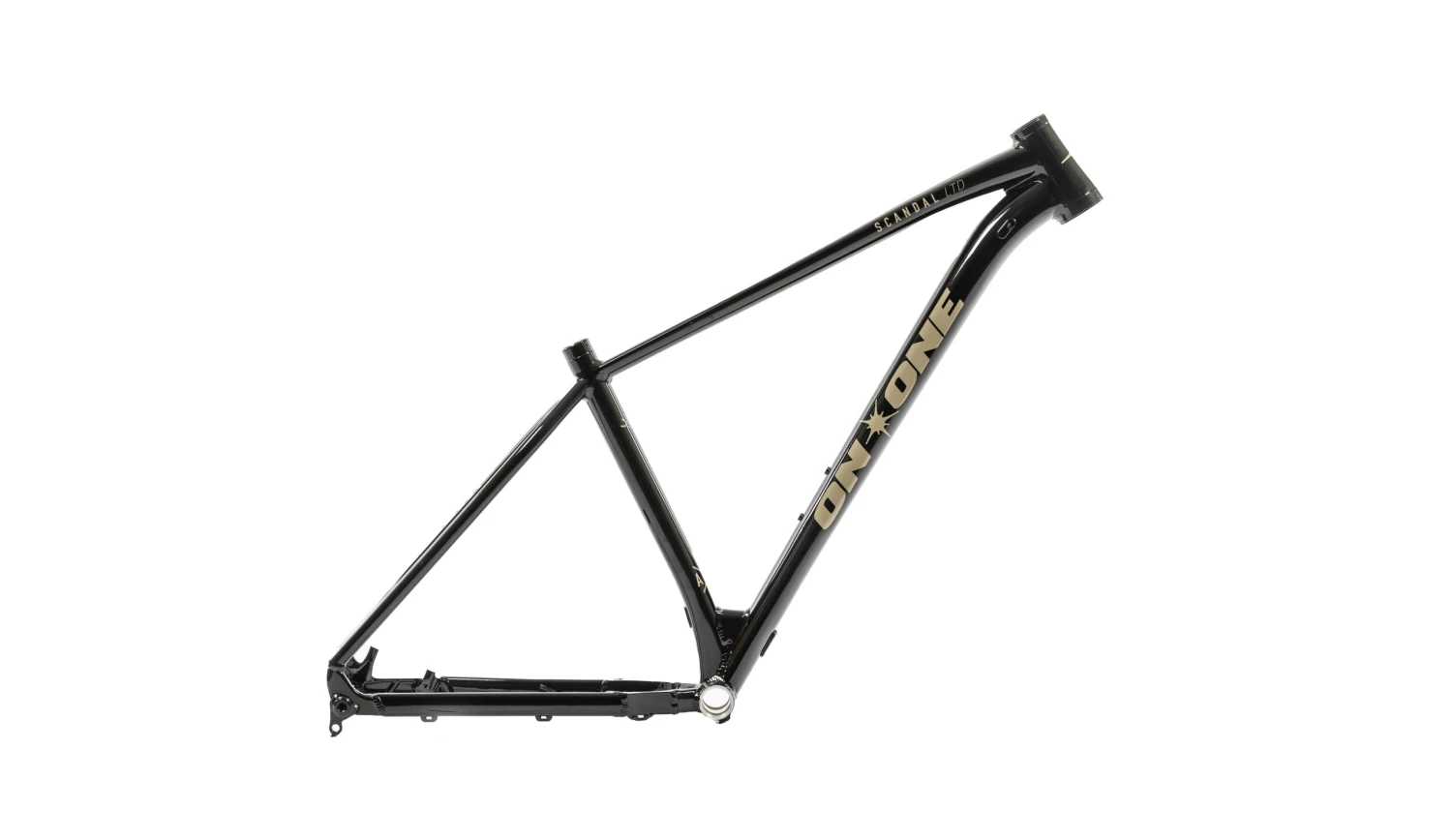

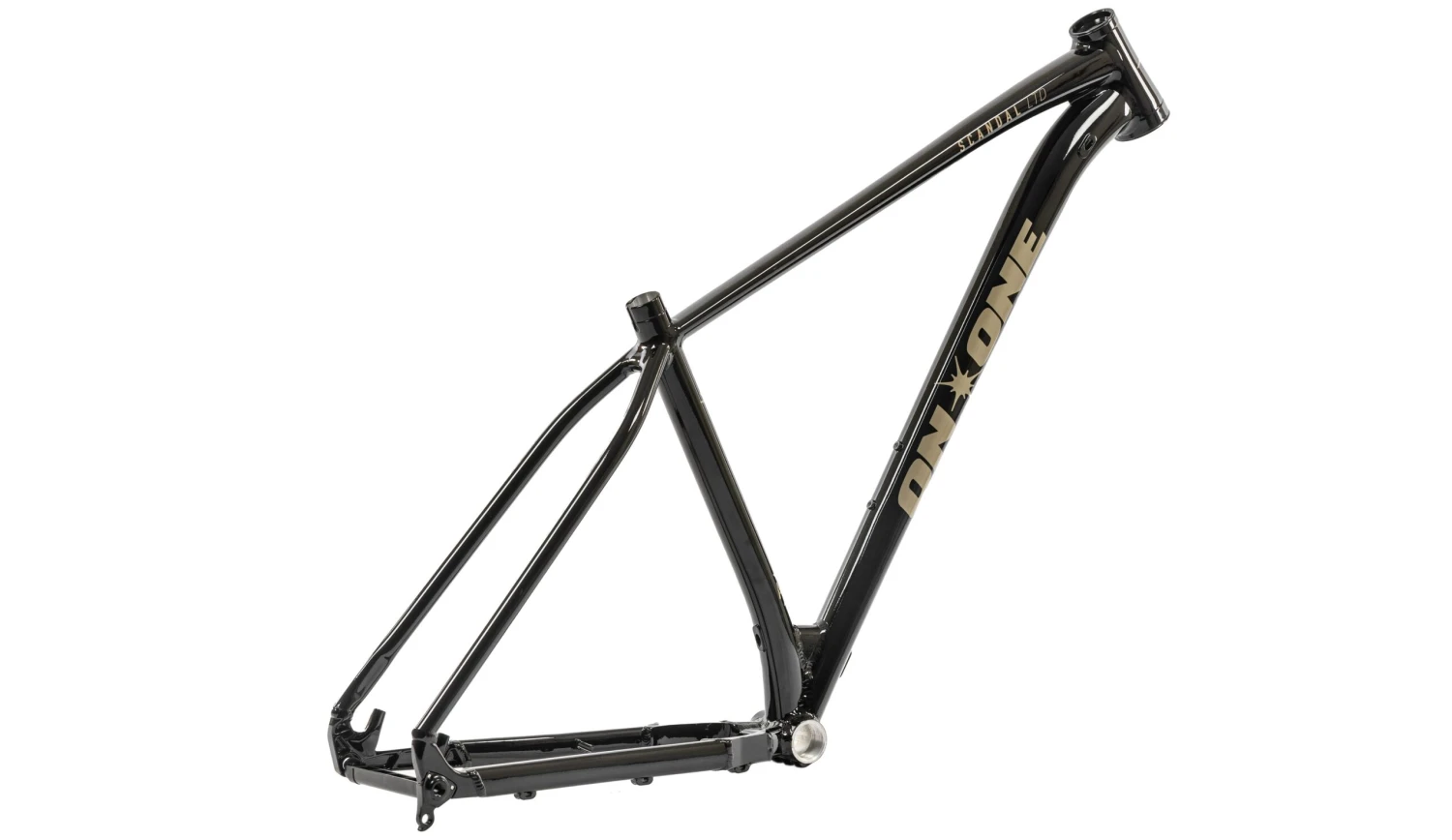

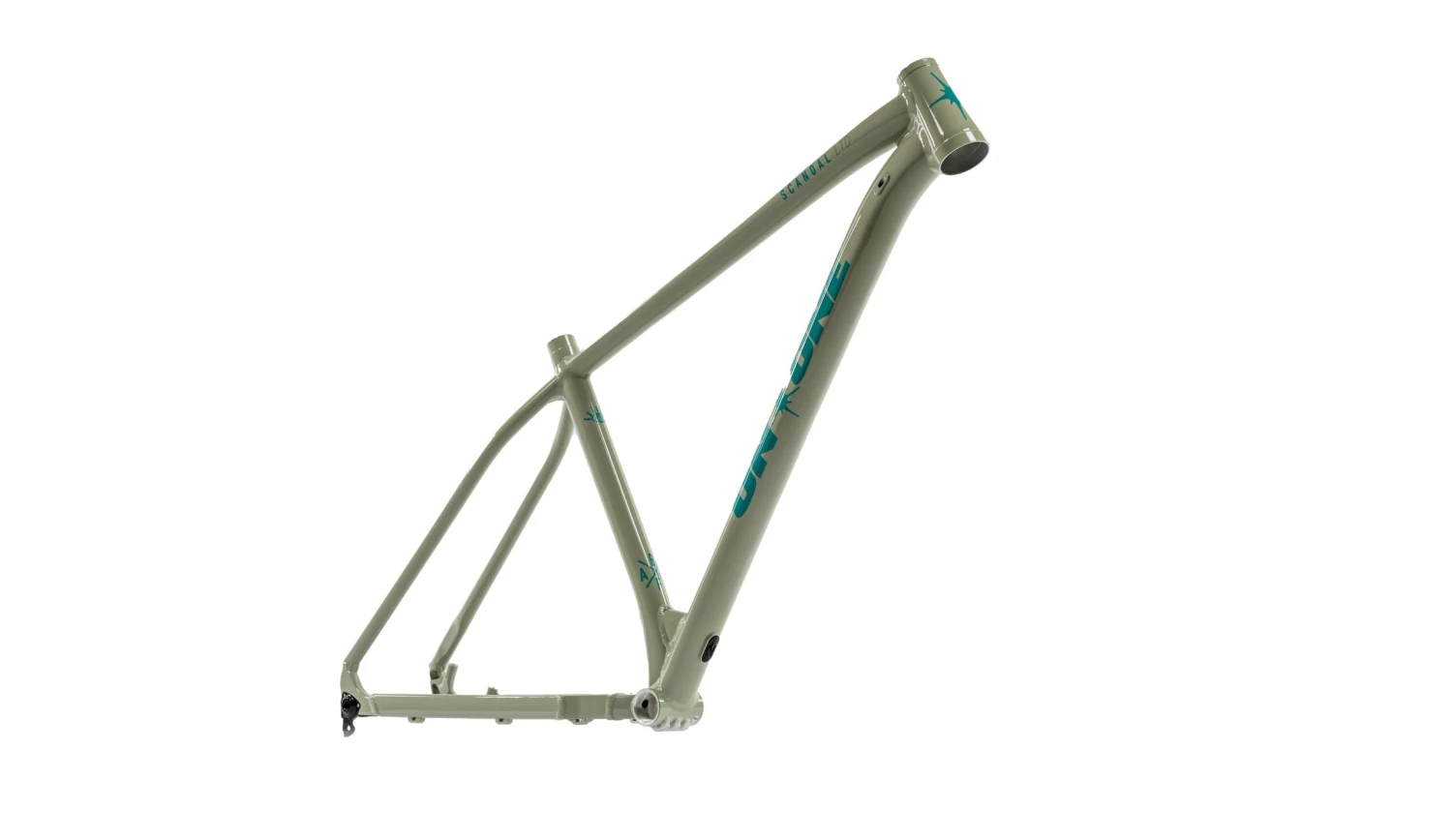

On-One Scandal LTD 29er MTB Frame

The On-One Scandal Trail Hardtail is an extremely agile and balanced 29er. Big tyre clearance, 65 degree head angle and 130mm of suspension travel highlights just how eager the Scandal is to have a good time.

• 29er Trail Hardtail
• Aerospace grade 6061 – T6 Heat Treated Aluminium
• 120-140mm Fork
• Tyre Clearance – 29er x 2.6”
• BSA 73mm Bottom Bracket

Scandal takes our years of experience from originating and evolving the sweetest handling 29er trail bikes and joins those delicious dots with a super light multi shaped and wall thickness alloy frame. Light, lively, and punchy without ever being punishing. Agile down the woods but totally sorted flat out in the mountains. Proper fork, big tyre space, dropper routing and killer value kit complete this classic fast, far, fun trail all-rounder.

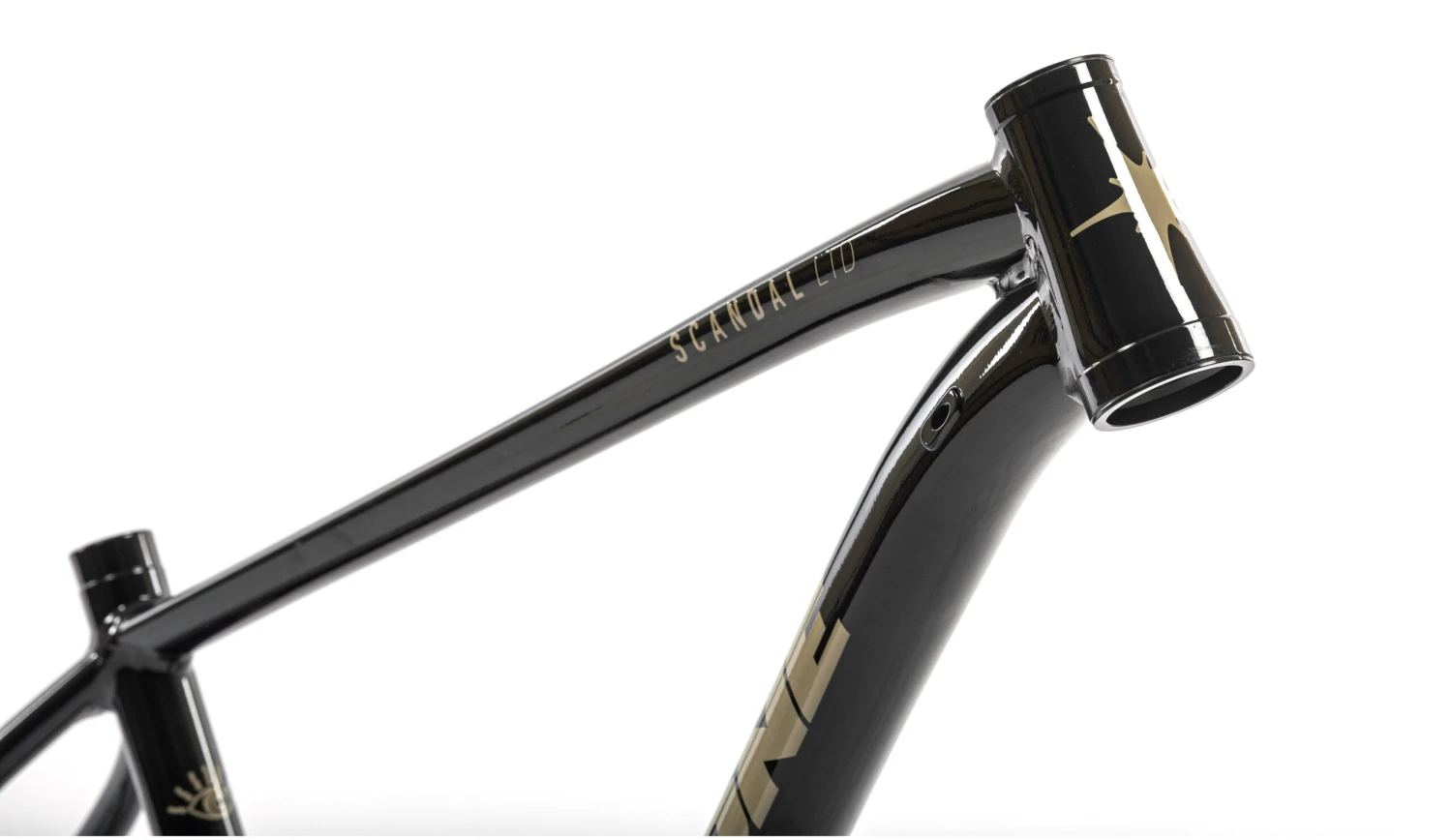

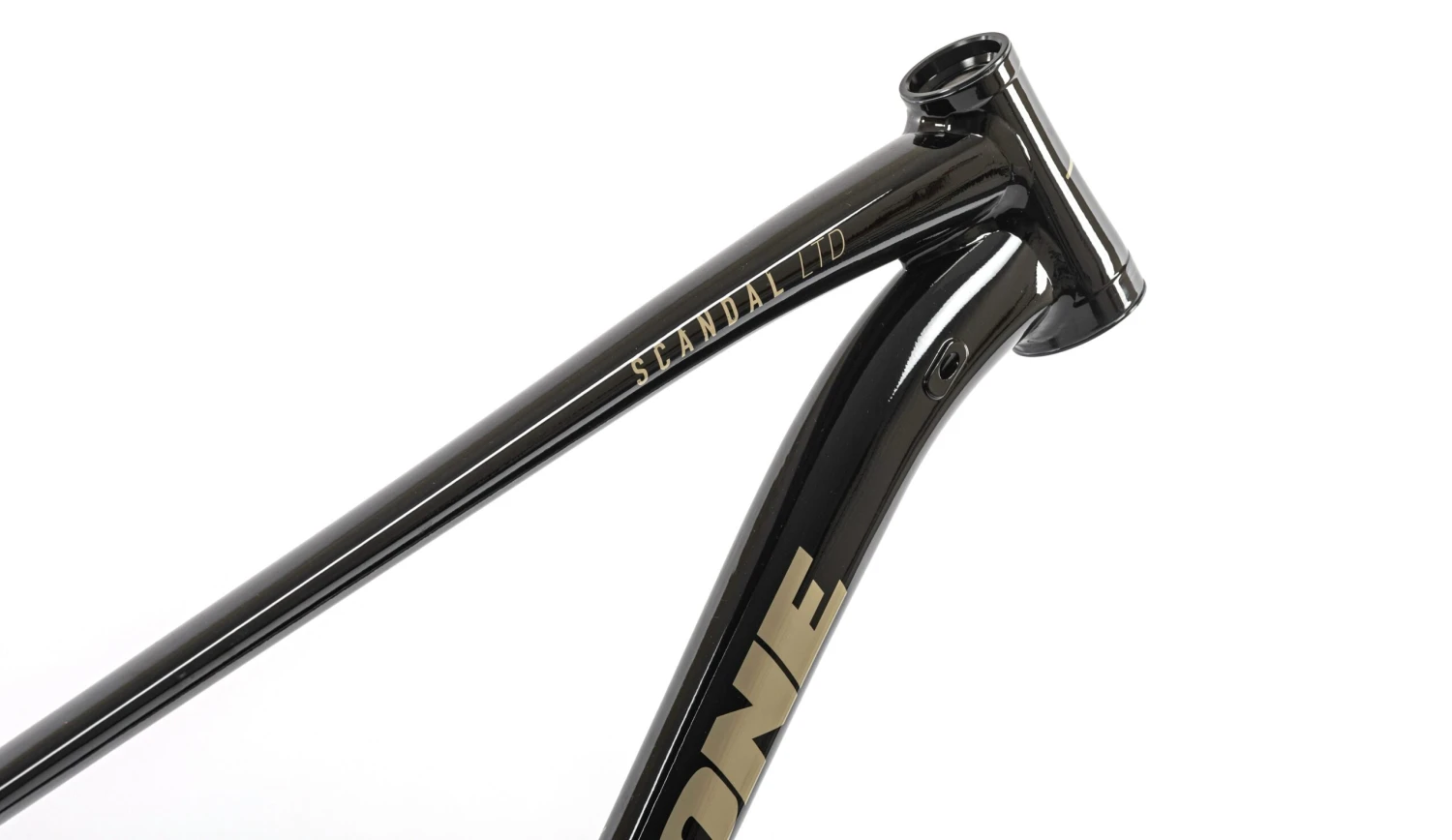

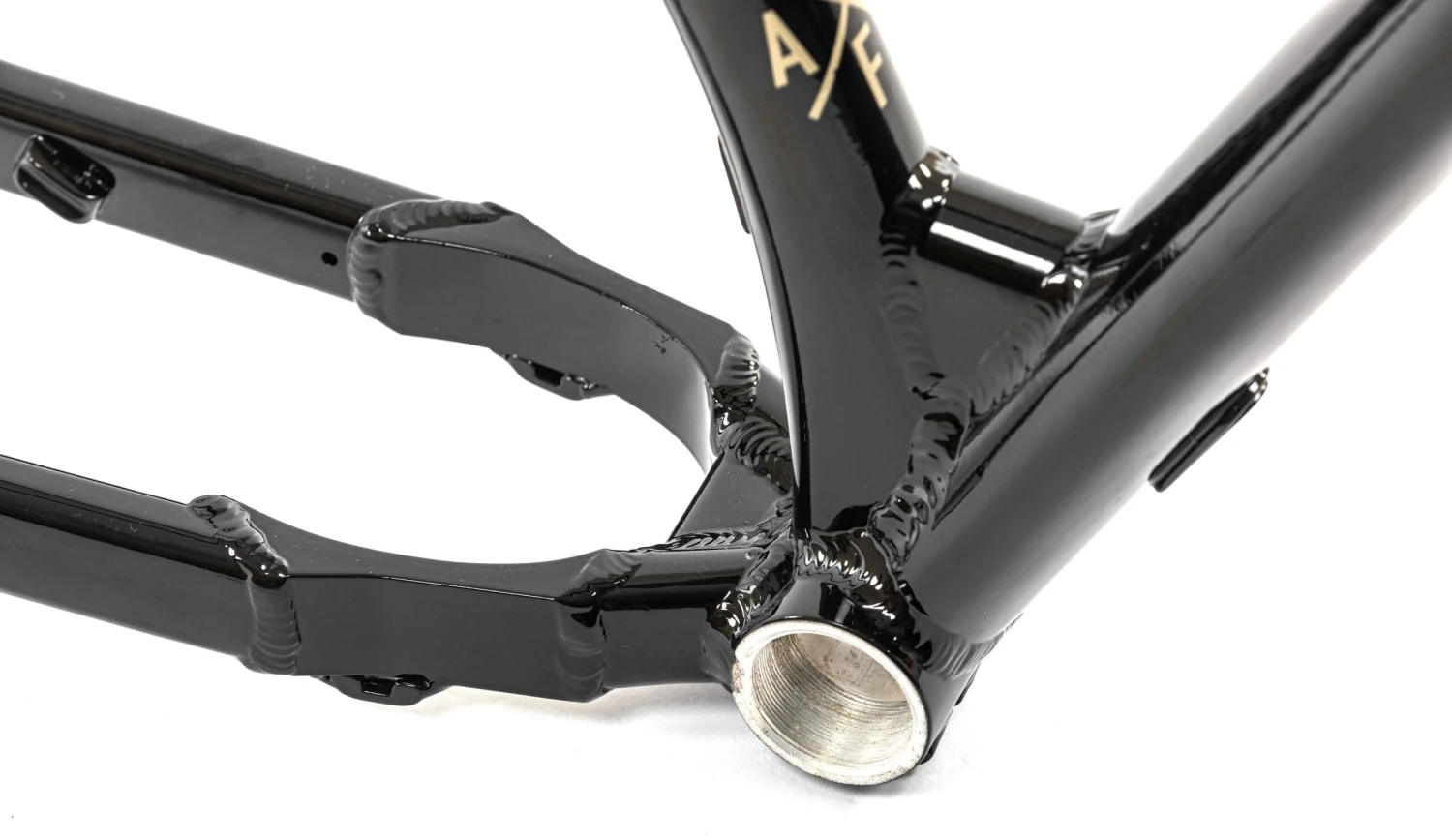

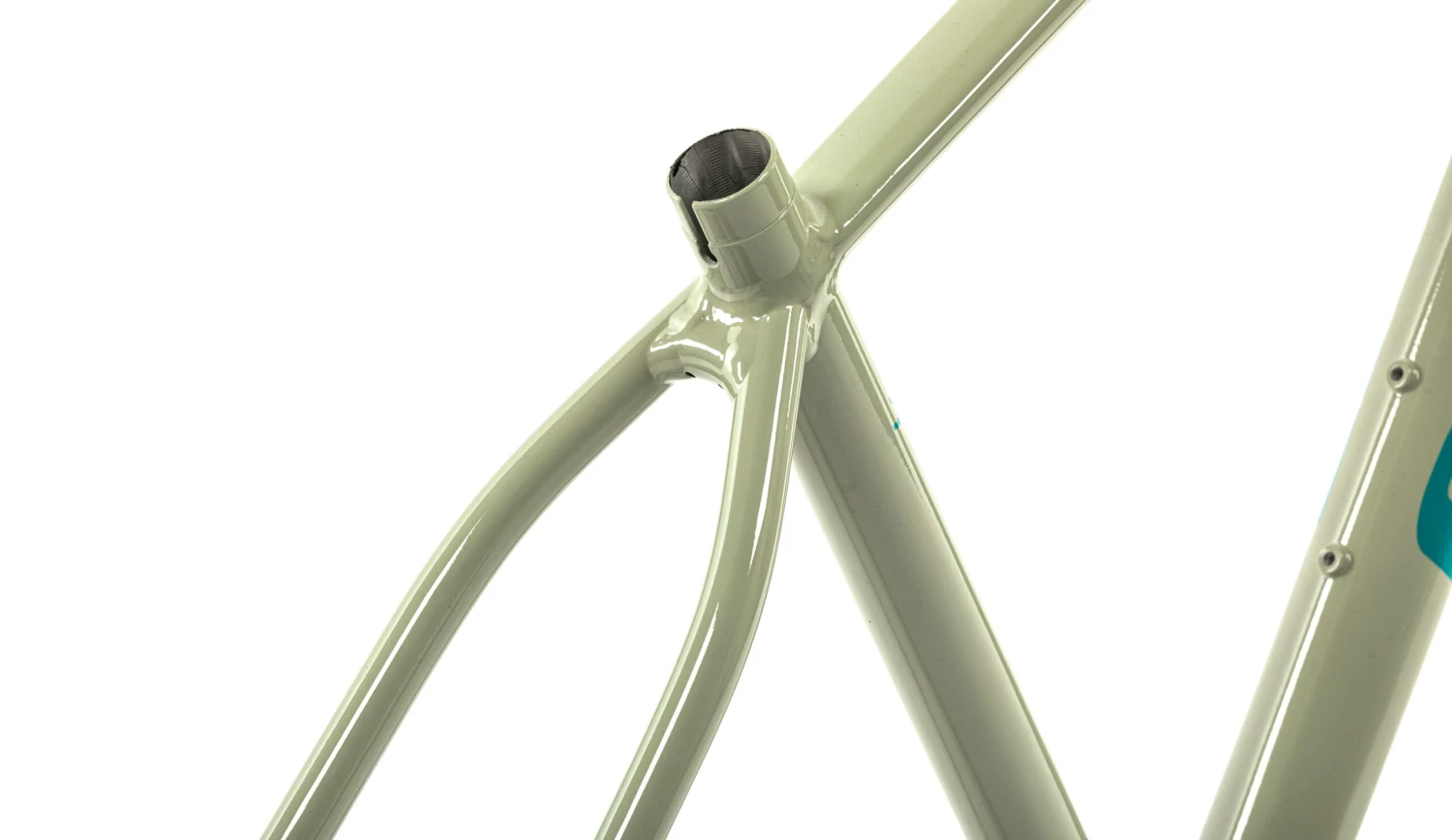

Custom Triple Butted Hydroformed Tubing results in a frame that is strong, responsive, comfortable, and lightweight. Tubes wall thickness is strictly controlled to offer strength at welds with lightness and compliance in tube centres. The custom bottom bracket yoke gives large tyre clearance whilst ensuring stiff power transfer. Hydroforming allows for Transitional ovalized D shaped tube profiles. Transitioning into flatter profiles along the length of the top tube and down tube. This offers increased stiffness or compliance as required in each area of the tube. Bridgeless seat stays reduce trail chatter. Box sectioned chainstays result in direct power transfer under pedal load.

65 degree head angle is suited for multiple ride styles. From trial centres to all day epics. 435mm chainstays for back wheel agility. 58mm BB drop keeps rider planted whilst ensuring ground clearance. Balanced stack and reach figures offer versatility, from endurance adventures to technical singletrack. Geometry designed around a 130mm suspension fork.

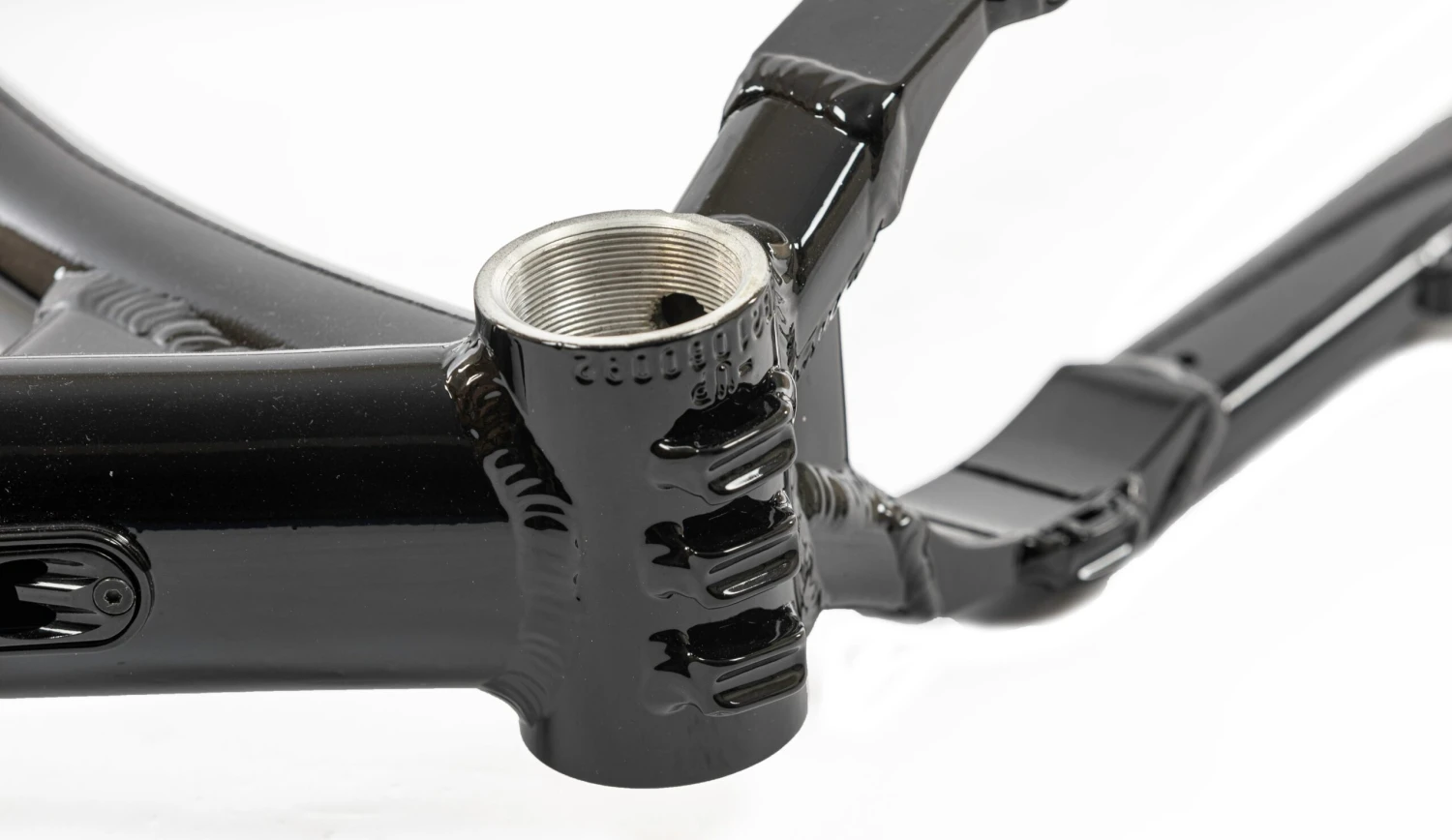

29er x 2.6” Big tyre clearance for wide treads. Adds comfort, capability and mud clearing. BSA 73mm Bottom Bracket Ultra-durable, creak free and easily serviceable. Cables are routed internally clean aesthetic and durability. Internal cables are protected from water and mud. Stealth dropper post routed.

Frame weight: 2kg (medium)
