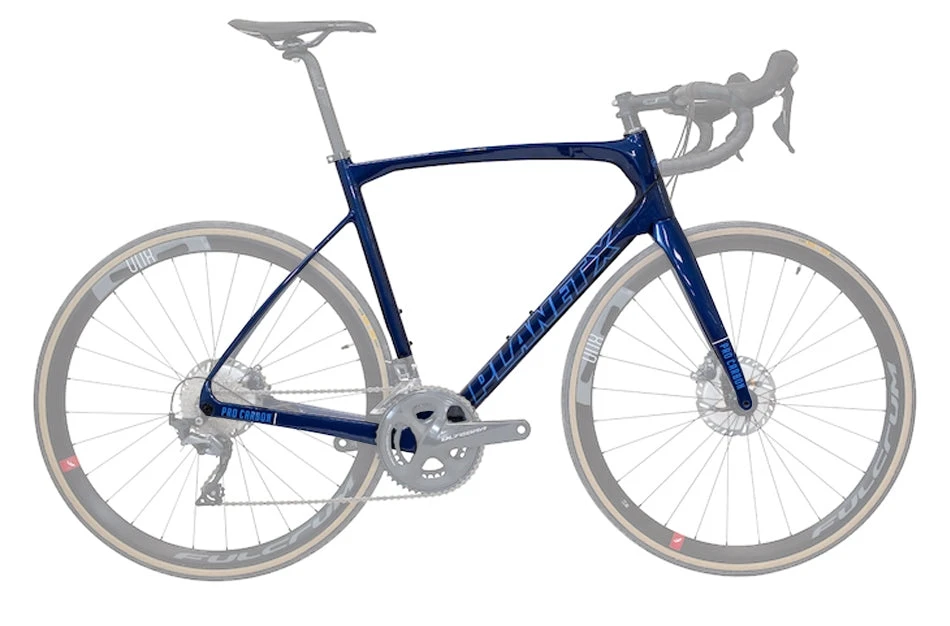

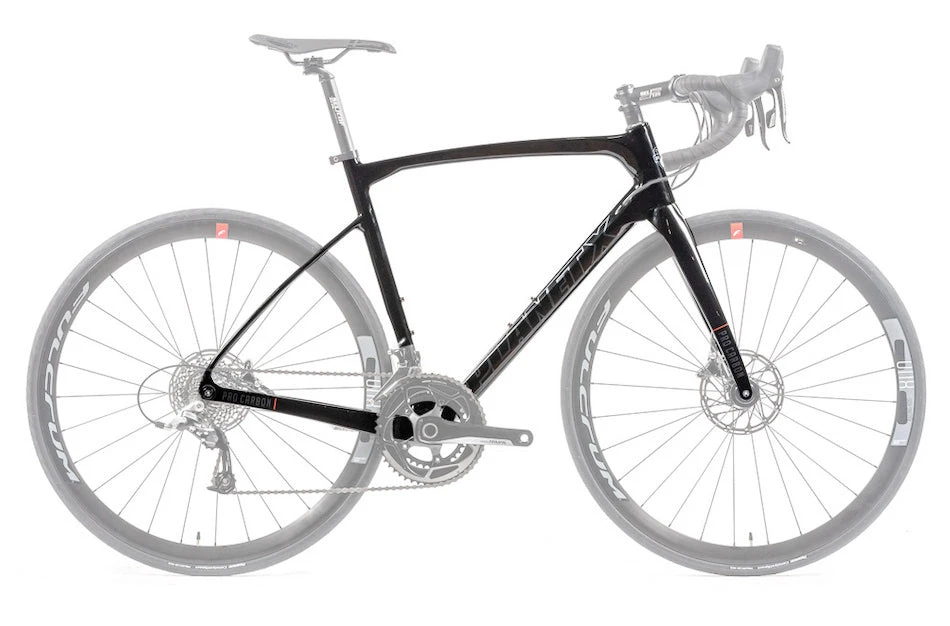

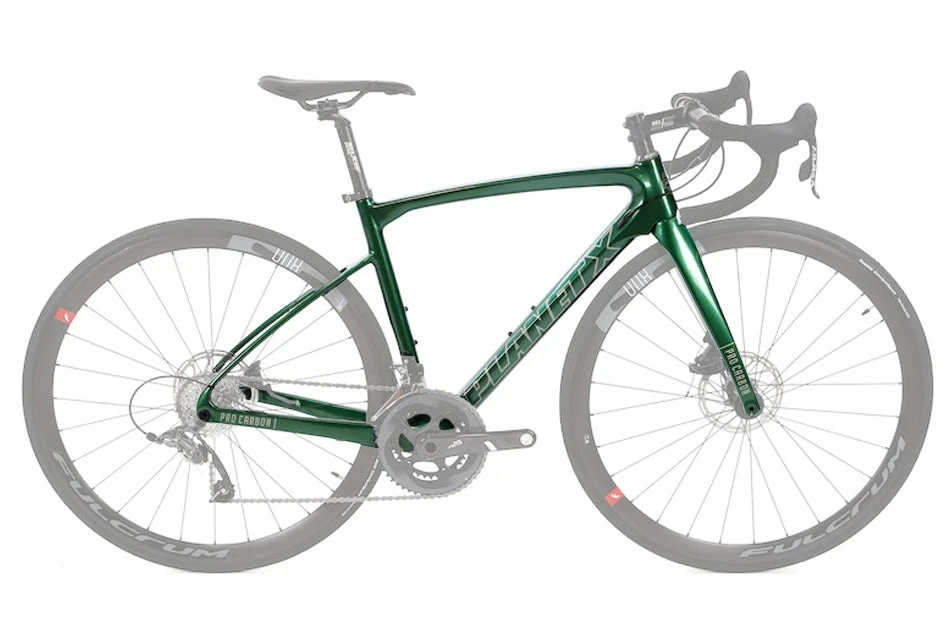

Planet X Pro Carbon Disc Frameset

The Planet X Pro Carbon is our legendary lightweight Carbon Road Bike. Stiff in the sprint, light in the hills and compliant for comfortable long days in the Saddle. A road Bike that can do it all, with no compromises.



• Lightweight Carbon Road
• T700 Carbon Layup
• Tyre Clearance 700c x 30mm
• Proven Road Geometry
• BSA 68mm Bottom Bracket

Classic road race geometry. The 73 degree head angle and 45mm Fork offset offers a fast and responsive 57mm trail figure. Short wheelbase and proven reach figures result in an agile ride. 68mm BB drop keeps rider planted whilst improving agility. A taller headtube allows for heightened stack, ensuring endurance comfort. Toray T700 Carbon construction, a 27.2mm Seatpost, and Tyre clearance of 30mm means you’ll be comfortable, while the aerodynamic Frame profile won’t hold you back at high speed.



Premium quality lightweight Japanese Toray T700 carbon fibre construction. Specifically considered layup to ensure stiffness and compliance where required in different areas of the frame. Stiff in areas like headtube and BB. Forgiving in areas like seat stays. Smooth wall EPS technology ensures the internal of the Frame walling is as smooth as the external. Shaving weight, but most importantly, ensuring a uniform thickness in tubing. Optimising strength and ride quality.



Meticulously designed aerodynamic profiles and shapes ensure excellent ride performance & comfort. Strictly controlled tube thickness and shapes result in a frame that is light, responsive, comfortable, and strong. Transitional ovalized D shaped tube profile along the length of the top tube and down tube. This offers increased lateral stiffness and vertical compliance. Slim line aerodynamic dropped seat stays transitioning into a wishbone seat tube for spring and comfort compliance. The large section bottom bracket junction and boxed chain stay maximises stiff power transfer. Round 27.2mm seatpost maximises comfort and allows for customer customisation. Tapered headtube gives composed handling and allows for large, durable headset bearings. Cables are internally routed to ensure durability and clean aesthetic.
